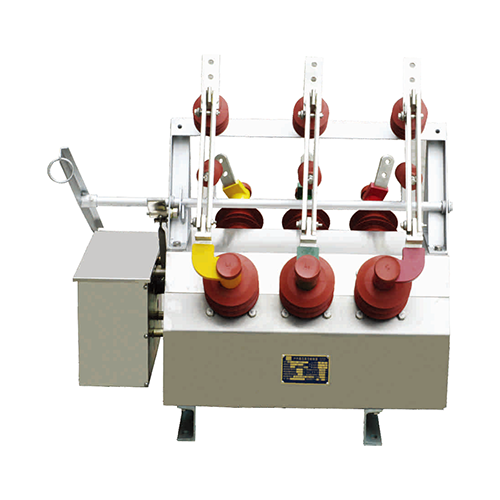

ZW6-12/630-16 (20) outdoor high-voltage vacuum circuit breaker

ZW6-12/630-16 (20) outdoor high-voltage vacuum circuit breaker

Service Environment

1. Working environment temperature: not more than 40ºC; The average daily temperature does not exceed 35ºC; The minimum ambient air temperature is -25 ° C.
2. Air relative humidity: the daily average is not more than 95%, the monthly average is not more than 90%; The average daily steam pressure is not more than 2.2kPa; The average monthly value is not more than 1.8kPa;
3. Altitude: no more than 2000m;
4. The surroundings are not significantly contaminated by dust, smoke, corrosive and/or flammable gases, vapors or salt spray;
5. Vibration or ground movement from outside switchgear and control equipment is negligible;
6. The amplitude of induced electromagnetic interference in the secondary system does not exceed 1.6kV.

Product Parameters

Product Features

1. Using magnetic actuator (permanent magnet) mechanism, the parts are greatly reduced, the closing power is greatly reduced, stable and reliable, without regular maintenance. Ensure the smooth completion of the operation sequence of the recloser (t1-0.3S, t2-3S, t3-3S, locking);
2. Using imported outdoor epoxy as external insulation material, light weight, long life, good weather resistance, no oil, no SF6, in line with environmental requirements.
3. Using advanced DSP chip, set control, protection, measurement, communication in one, so that the system has advanced design, super function.
The integrated sensor technology is adopted to realize the on-line monitoring of the device.
4. Synchronous closing technology is adopted to realize synchronous closing of circuit breakers and effectively suppress operating overvoltage and inrush current.
5. Flexible communication mode, support general wireless packet service (GPRS), support Chinese and English short message;
6. Sampling up to 128 points per week and fast FFT conversion provide high speed and high precision data from fundamental wave to 19th harmonic wave for line measurement and protection.
7. With fast protection function, the distribution network can automatically isolate and restore power supply without the cooperation of the main station, which greatly improves the reliability of power supply.
8. The single-phase grounding fault can be judged online without additional configuration, and the alarm or tripping can be given according to the rule.
9. The temperature correction technology is adopted to make the device achieve high precision under various temperature conditions.
10. The specially designed power management module can provide automatic conversion of 2 auxiliary power input lines (AC110V or AC220V), monitor the battery and control the battery charging voltage and charge and discharge power supply;
11. Friendly interface, full Chinese display, easy to set;
12. All stainless steel manufacturing, no rust, truly maintenance free.
